Hy-FI
HYFI-V600
The visible-band member of the Hy-FI family — laboratory-grade spectroscopy across the visible spectrum, the foundation for vegetation indices, water color, and true-color science products.
| Spectral Range | 400–800 nm |
|---|---|
| Spectral Resolution (FWHM) | 0.6 nm |

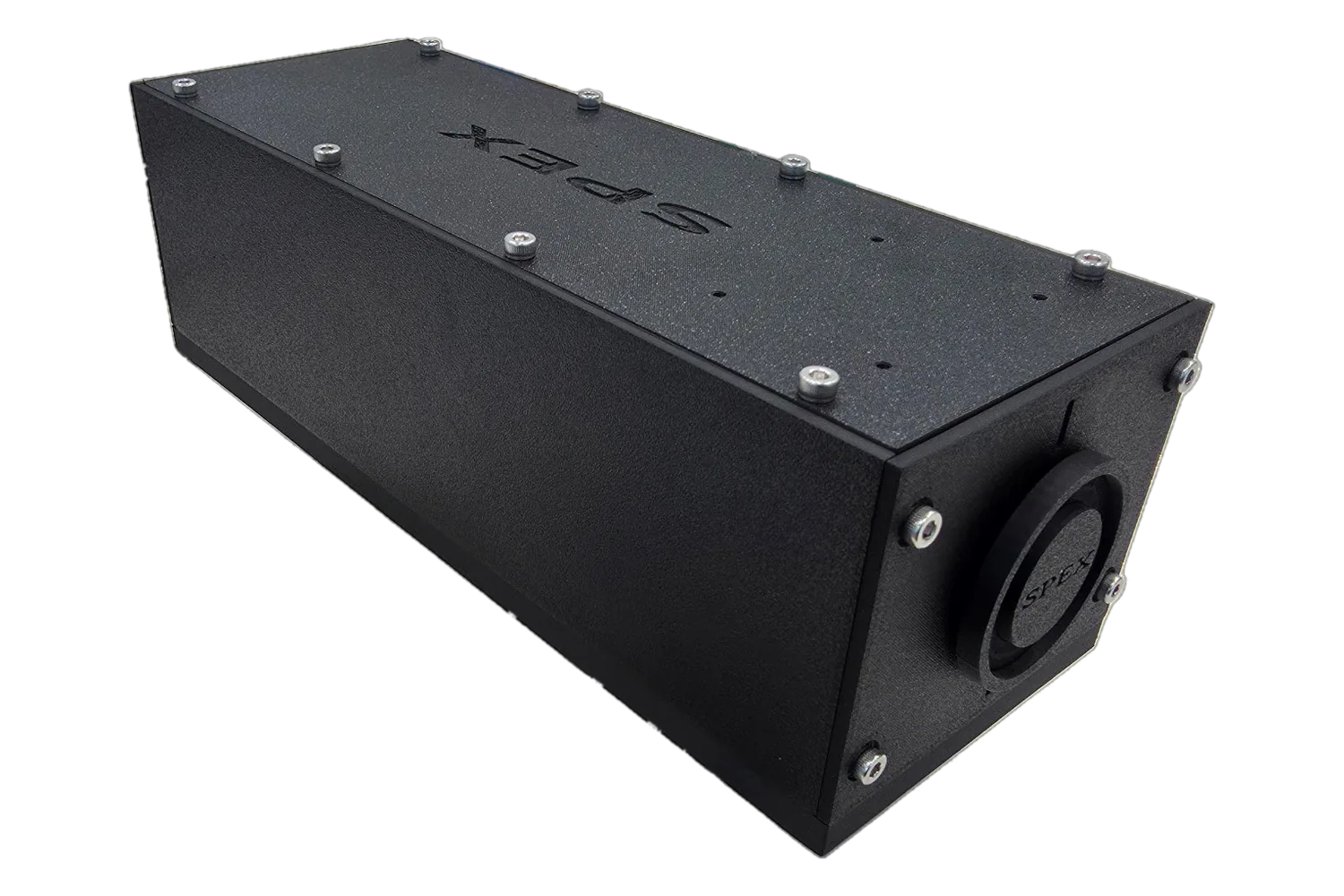

HYFI-V600L
The visible-band linear spectrometer in the Hy-FI family. Currently in development.
Detailed specifications are coming soon.

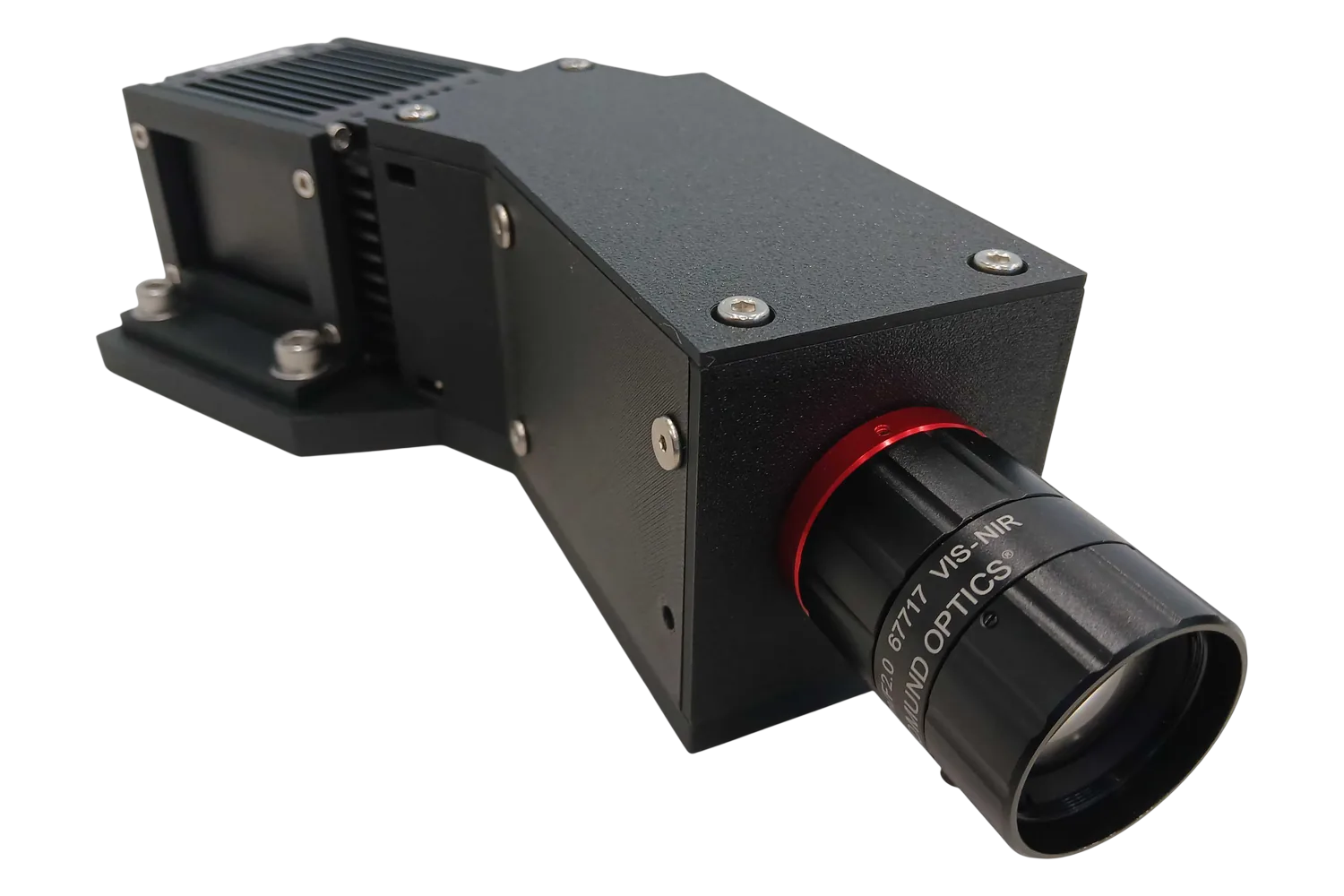

HYFI-N900
Extending Hy-FI into the near-infrared, where vegetation structure, plant stress, and soil moisture reveal themselves beyond human vision.
| Spectral Range | 714–1115 nm |
|---|---|
| Spectral Resolution (FWHM) | 0.9 nm |

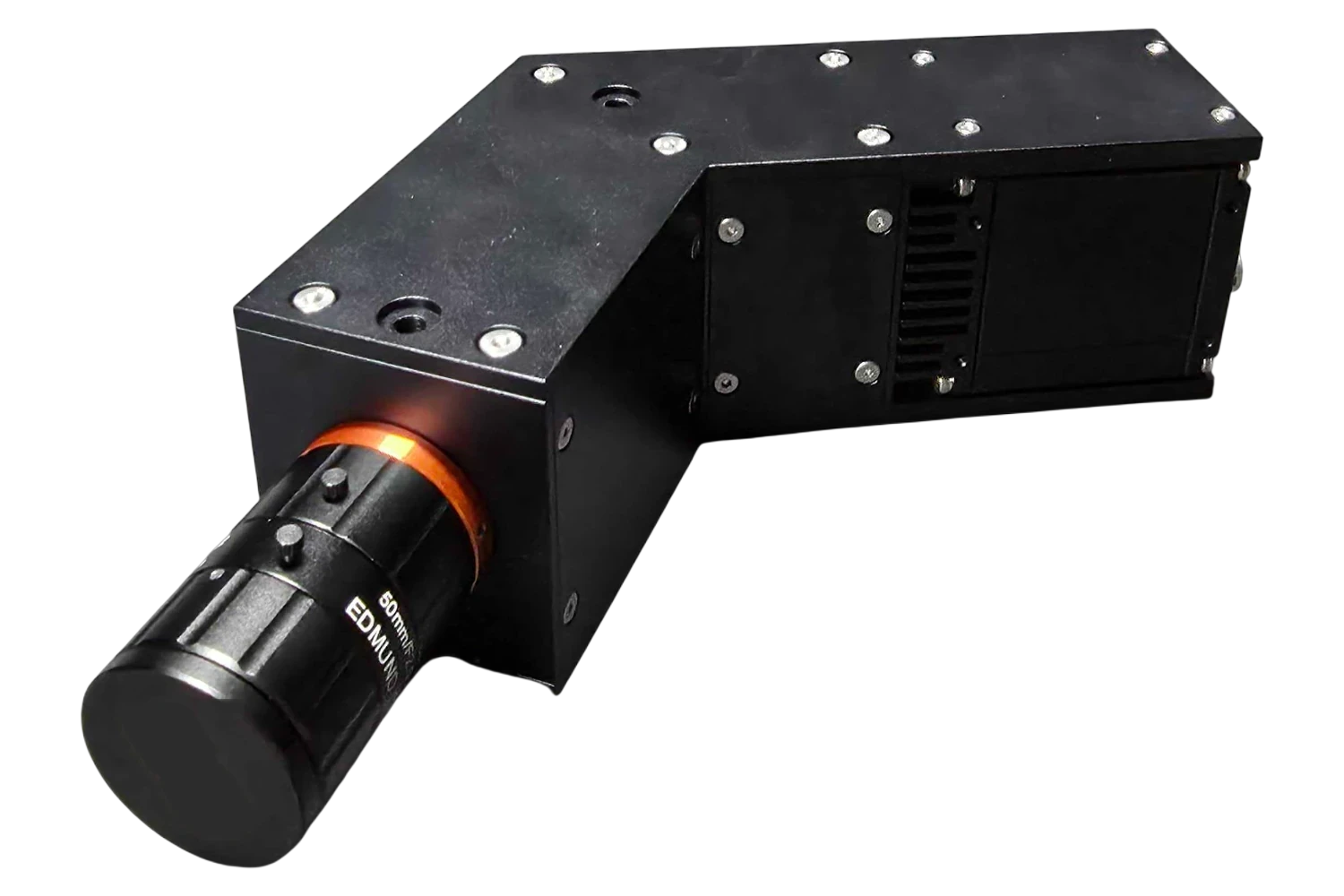

HYFI-S1300
The shortwave-infrared specialist — reading mineral signatures, gas plumes, and moisture content that no visible-band sensor can detect.
| Spectral Range | 1077–1477 nm |
|---|---|
| Spectral Resolution (FWHM) | 1 nm |
Model comparison
Every Hy-FI model side by side. The bands differ; the optical design and build standard do not.
|
HYFI-V600
|
HYFI-N900
|
HYFI-S1300
|
|
|---|---|---|---|
| Spectral Range | 400–800 nm | 714–1115 nm | 1077–1477 nm |
| Spectral Resolution (FWHM) | 0.6 nm | 0.9 nm | 1 nm |
| Spectrograph Type | Long-slit | Long-slit | Long-slit |
| Dimensions | 230 × 105 × 80 mm | 210 × 120 × 70 mm | 160 × 160 × 70 mm |
| Weight | 3.1 kg | 1.23 kg | 1.33 kg |
| Front Optical Mount | M42 | C-mount | C-mount |
| Data Interface | USB 3.0 | GigE | GigE |
Measured with a 35 mm lens.
